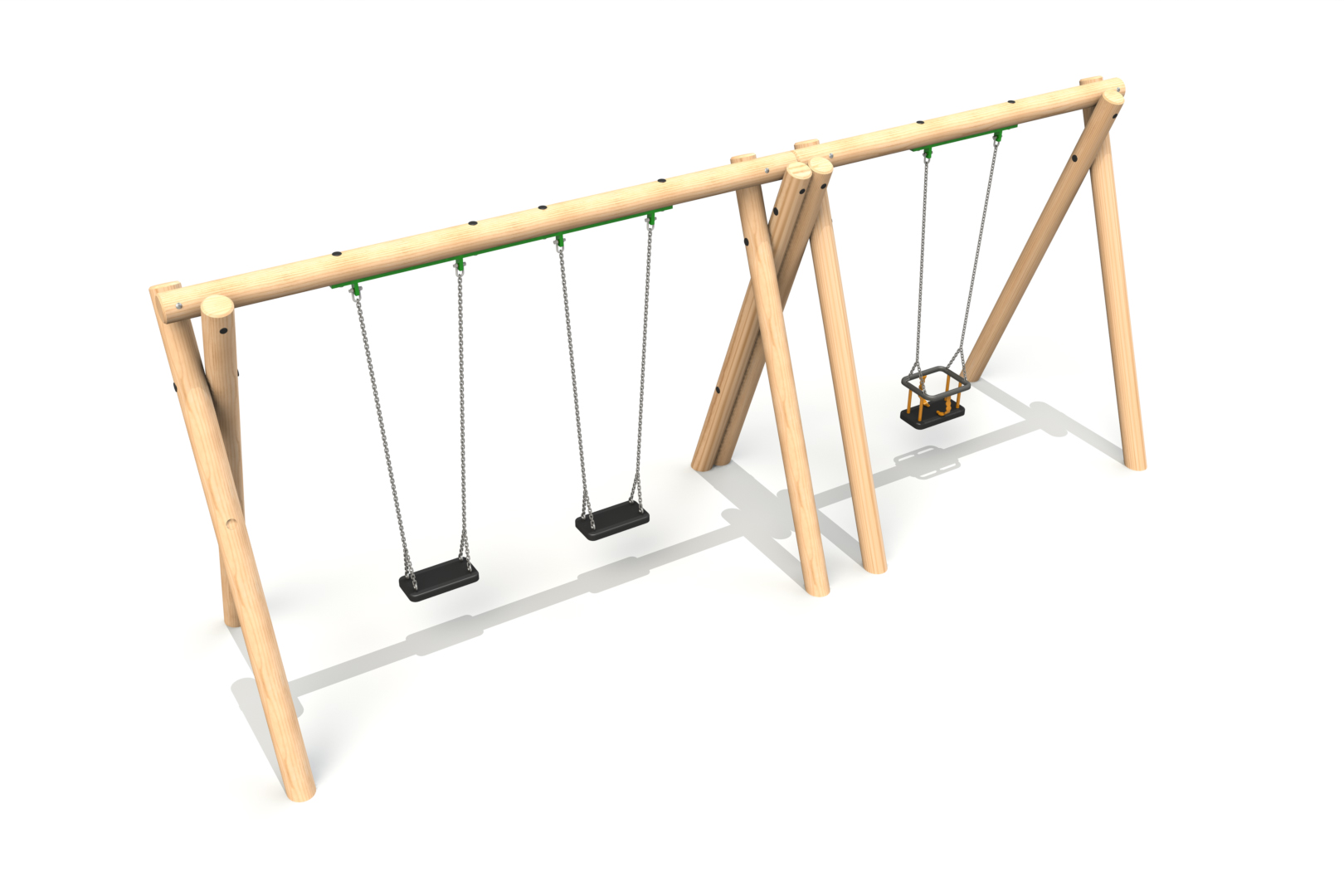

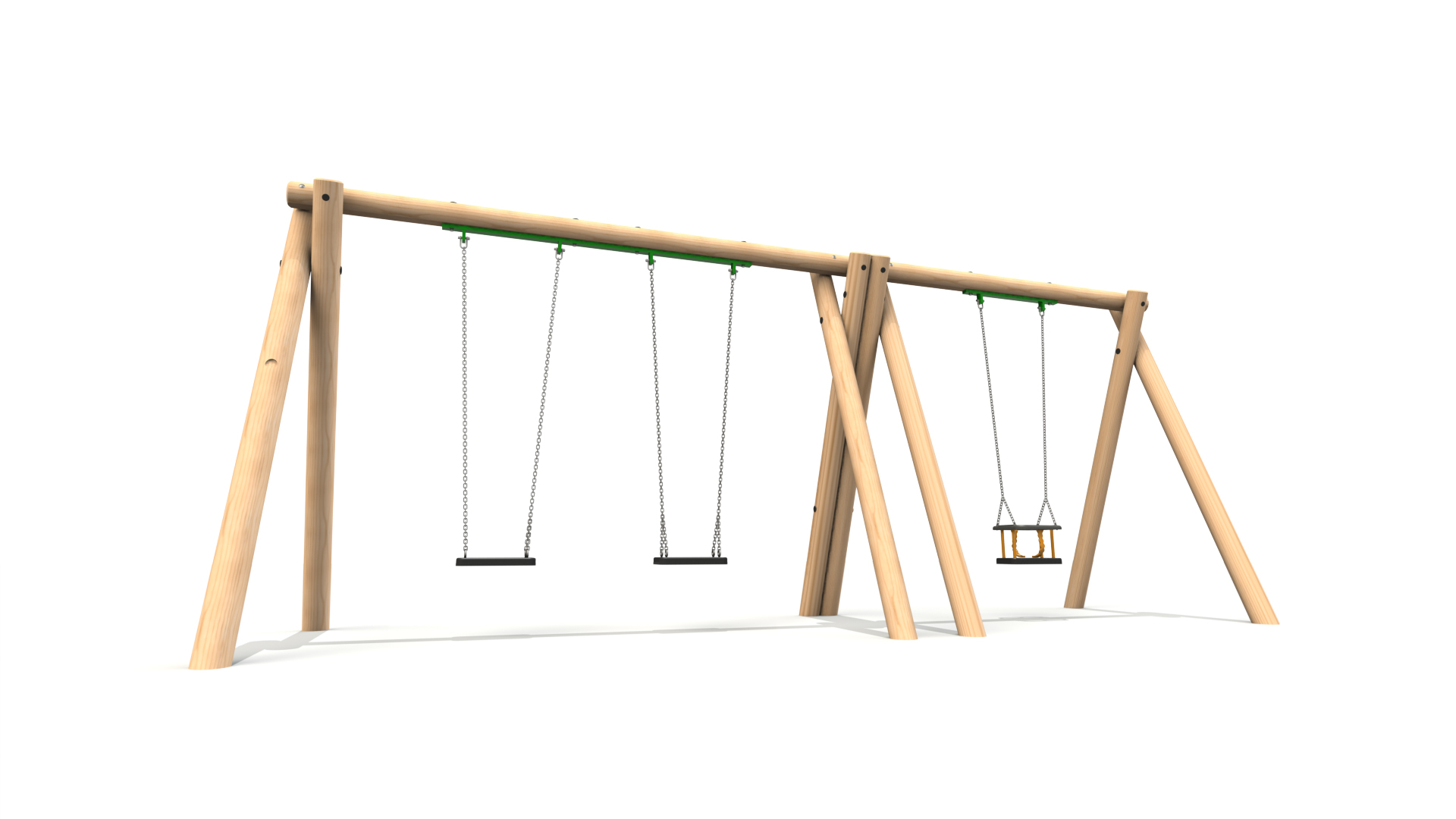

2 Flat & 1 Cradle Seat (2.4m)

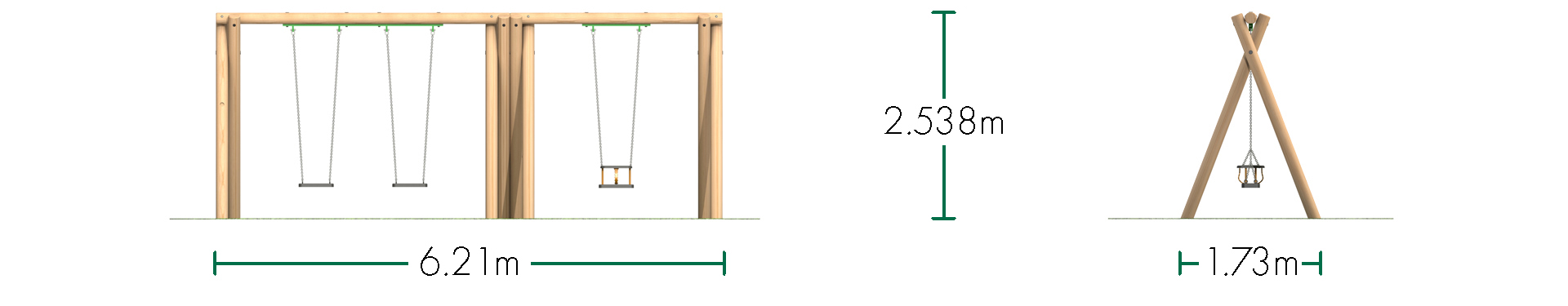

Dimensions

Length: 6210mm
Width: 1730mm
Height: 2538mm
Free Fall Height: 1400mm

Safety Surfacing Area Required: 31.02m2
Safety Surface Area Dimensions: 6.7 x 4.63m

Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.7m (from 6.7m) to allow an extra 500mm of surfacing at either end.

Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.

Also available with Steel Feet
(Additional charges apply)

Download 2D DWG

Main Features

  • Timber Construction
  • 2 x Rubber Flat Seats
  • 1 x Rubber Cradle Seats

Contact us with any enquiries

Our design team are here to help.
