2 Cradle Seats (2.0m)

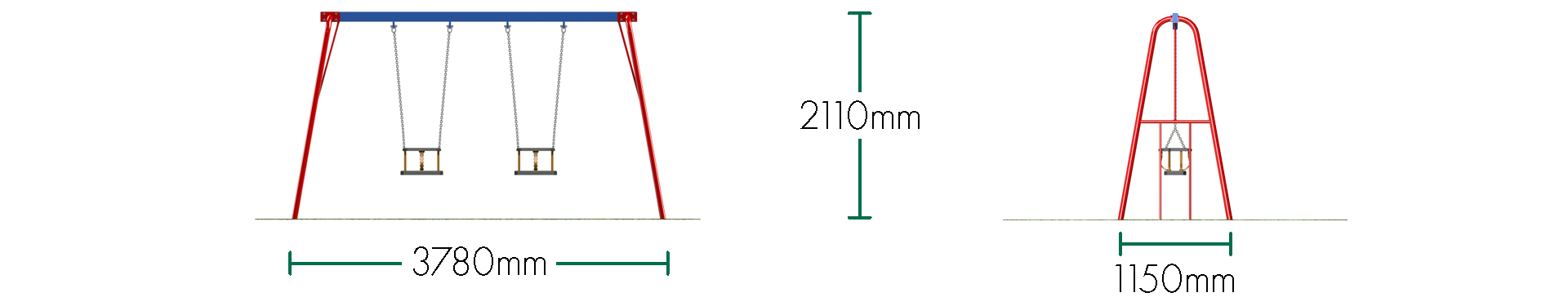

Length: 3780mm
Width: 1150mm
Height: 2110mm
Free Fall Height: 1220mm

Safety Surfacing Area Required: 17.43m2
Safety Surface Area Dimensions: 6.052 x 2.88m

Safety surface area dimensions above are for wet pour surfacing (synthetic). If loose fill is being used the length needs to be increased to 7.052m (from 6.052m) to allow an extra 500mm of surfacing at either end.

Additionally for a wet pour impact area that is level with the surrounding surface, there must be an additional area with a length of 500mm in the direction of the swing free from obstacles.

Different steel colours available upon request.

Main Features

  • Steel Construction
  • 2 x Rubber Cradle Seat

Contact us with any enquiries

Our design team are here to help.
